A2 cold work die steel

A2 mold steel introduction:

A2 has high hardness after heat treatment, and can reach 60-62HRC high hardness after tempering at high temperature (500-520°C). It is good in strength, and the residual stress after cutting is reduced by high temperature tempering. Therefore, cracks and deformation after wire cutting of large molds and molds requiring precision are suppressed.

A2 Die Steel Chemical Composition

Chemical composition (%): Carbon C: 0.95～1.05 Silicon Si: 0.20～0.40 Manganese Mn: 0.45～0.75

                    Chromium Cr: 4.75～5.00 Molybdenum Mo: 2.00 Vanadium V: 0.28

A2 mold steel use:

1) Drawing dies, crimping dies and embossing dies.

2) Cutting tools.

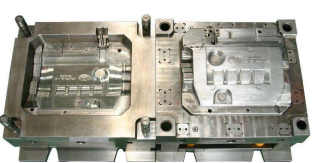

3) Applied to thermosetting plastic molds and overall hardened molds.

A2 Die Steel Properties

A2 is an improved cold work die steel, under conventional heat treatment conditions,

Retained austenite is almost completely decomposed, and cryogenic treatment can generally be omitted.

It can still maintain high toughness under strong hardness.

A2 Die Steel Price

Please contact us by phone: 13713200026 for the current quotation, please scan the QR code below.

Landline phone: 0769-33549898

ASSAB Heat Treatment Co., Ltd. sells various imported and domestic steel products with complete specifications.

Wholesale and retail of original factory warranty can be provided for mold steel, high speed steel, stainless steel,

One-stop service for alloy steel, tungsten steel, milling, vacuum heat treatment, and drawing processing.
