Cr12MoV die steel

Cr12MoV die steel introduction:

Cr12MoV (alloy tool steel) is suitable for cold working die steel. The hardenability of the steel, the hardness of quenching and tempering, the wear resistance and the strength are all higher than Cr12. Various cold stamping dies and tools with complex shapes and heavy working conditions, such as punching dies, trimming dies, rolling dies, steel plate deep drawing dies, circular saws, standard tools and gauges, thread rolling dies, etc.

Chemical composition of Cr12MoV die steel:

Chemical composition (%): Carbon C: 1.45～1.70 Silicon Si: ≤0.40 Manganese Mn: ≤0.40 Sulfur S: ≤0.030

                              Phosphorus P: ≤0.030 Chromium Cr: 11.00～12.50 Nickel Ni: allowable residual content ≤0.25

                              Copper Cu: Allowable residual content ≤0.30 Vanadium V: 0.15~0.30 Molybdenum Mo: 0.40~0.60

Cr12MoV die steel use:

Cr12MoV die steel has higher hardenability, hardness, strength and toughness after quenching and tempering than CR12. Workpieces with a diameter of 300-400mm or less can be completely hardened, and the quenching deformation is small, but the high-temperature plasticity is poor. Cr12MoV is mostly used to manufacture composite molds and tools with large cross-section, complex shape and heavy workload. Such as punching die, trimming die, piping die, steel plate, etc.

 Cr12MoV die steel properties:

Cr12MoV steel is carbon molybdenum Lai body steel. And added molybdenum and vanadium elements,

Improve the hot workability, impact toughness and carbide distribution of steel

have been significantly improved. The steel has good wear resistance,

Hardenability, hardenability, toughness, thermal stability, compressive strength

degree, as well as micro-deformation, excellent comprehensive performance and wide adaptability.

 Cr12MoV Die Steel Price

Please contact us by phone: 13713200026 for the current quotation, please scan the QR code below.

Landline phone: 0769-33549898

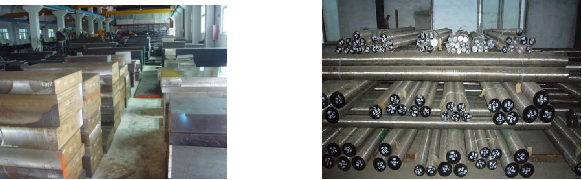

ASSAB Heat Treatment Co., Ltd. sells various imported and domestic steel products with complete specifications.

Wholesale and retail of original factory warranty can be provided for mold steel, high speed steel, stainless steel,

One-stop service for alloy steel, tungsten steel, milling, vacuum heat treatment, and drawing processing.
